MD1053

Color: Black (Other colors can be customized)

Standard size

Width: 19 ;25; 35 millimeters

Length: 5 meters

Inner diameter of the paper tube: 38 millimeters

(Other sizes can be customized)

Performance	Units	Typical values	Test method
Total thickness	mm	0.70±0.1	ASTM D1000
Tensile strength	N/cm	＞20	ASTM D1000
Elongation	%	＞10	ASTM D1000
Peel force (for steel plates)	N/cm	＞2.4	ASTM D1000
Peel force (against substrate)	N/cm	＞2.4	ASTM D1000
Noise reduction	dB(A)	D:10~15	GMW16740
Wear-resistant	Cycle	B级	GWT A D14-10
Operating temperature	℃	-40/+105	LV312

Note: The above data are typical figures based on test results and are not used as product specifications. For detailed information, please contact Langtuo Technology.

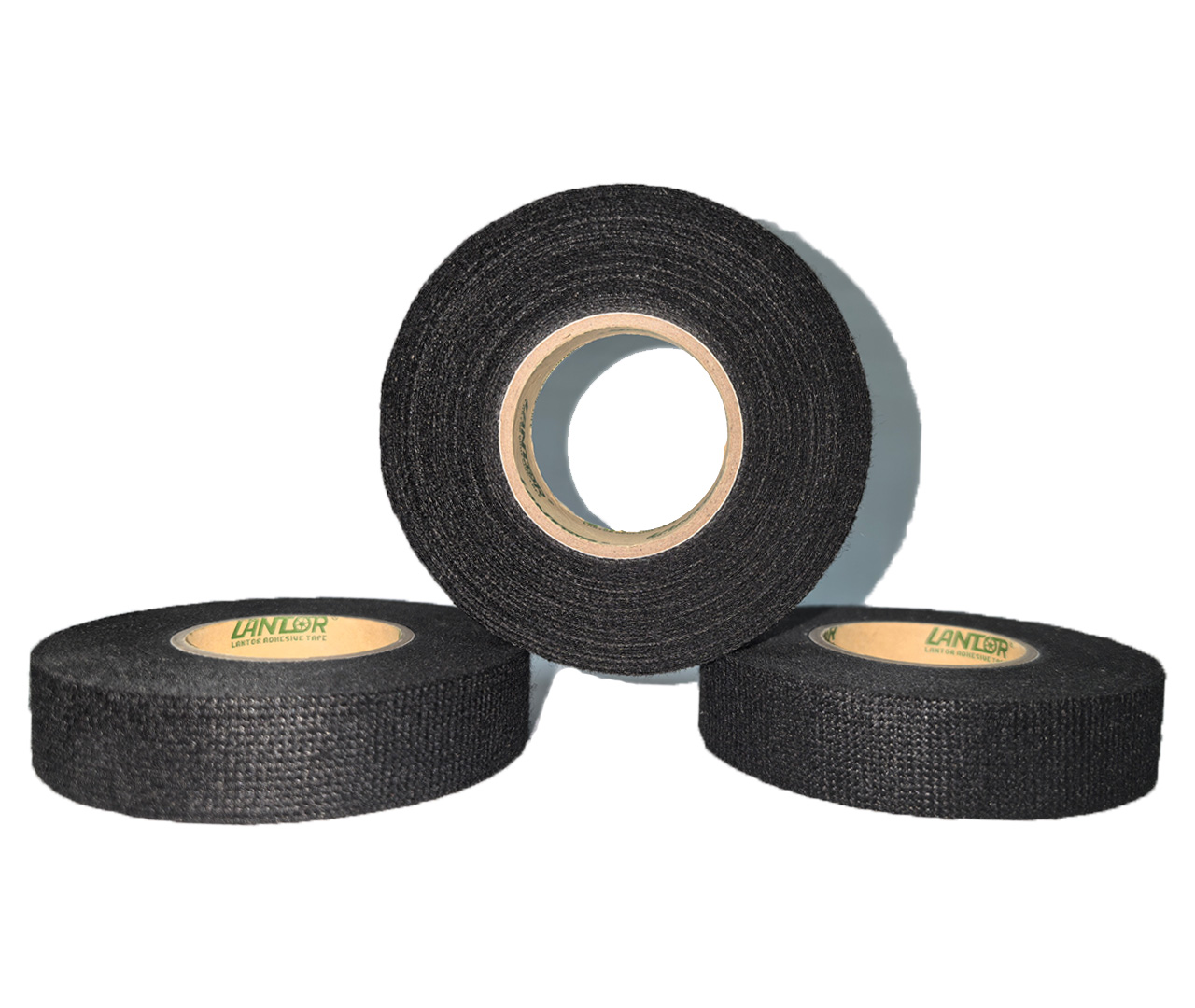

Specially designed for wrapping automotive wiring harnesses. The base material of the tape is relatively thick and has high self-tension. It is recommended that the customer add some wrapping at the end of the process design.

It can be stored for 12 months in the original packaging box at 23℃×65%RH, away from direct sunlight.
