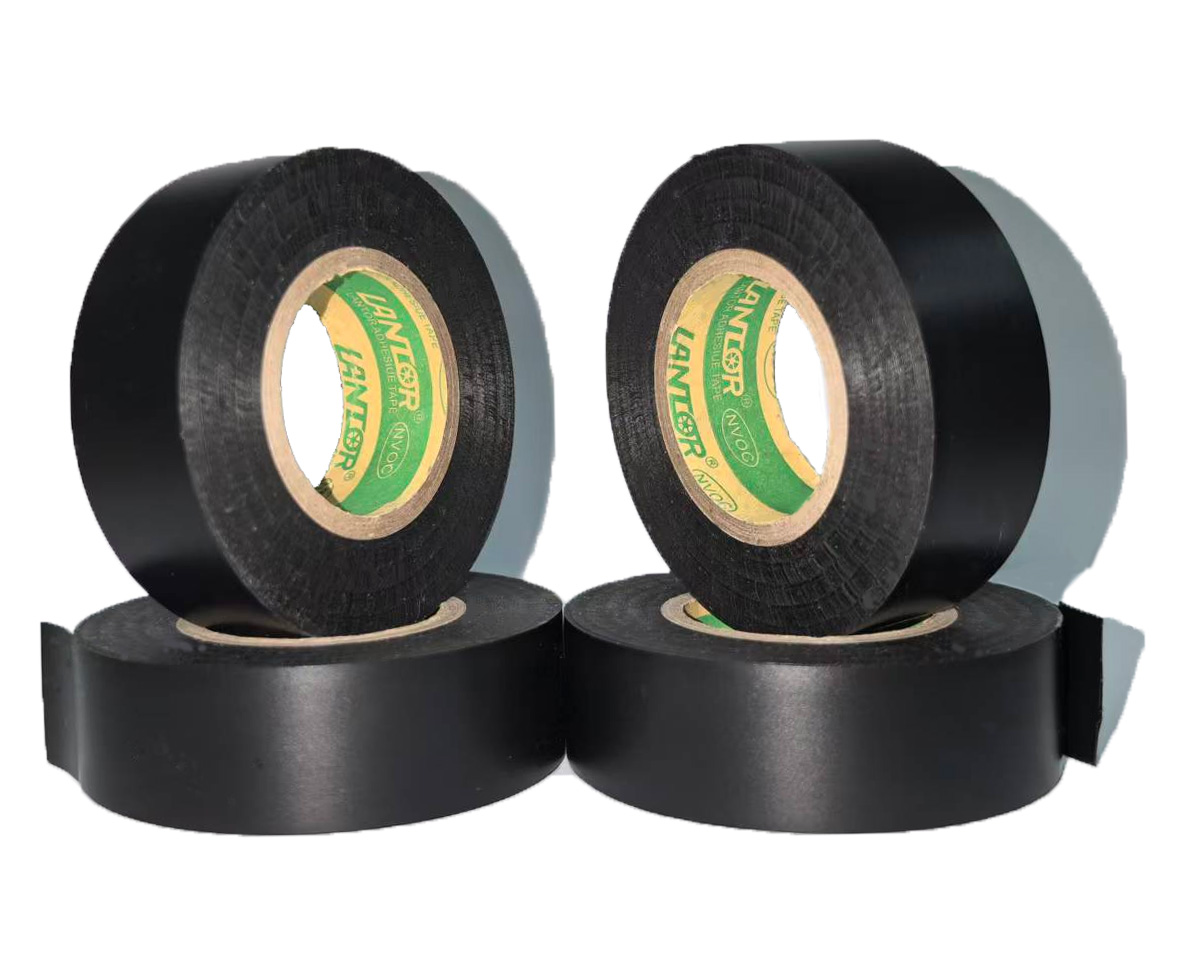

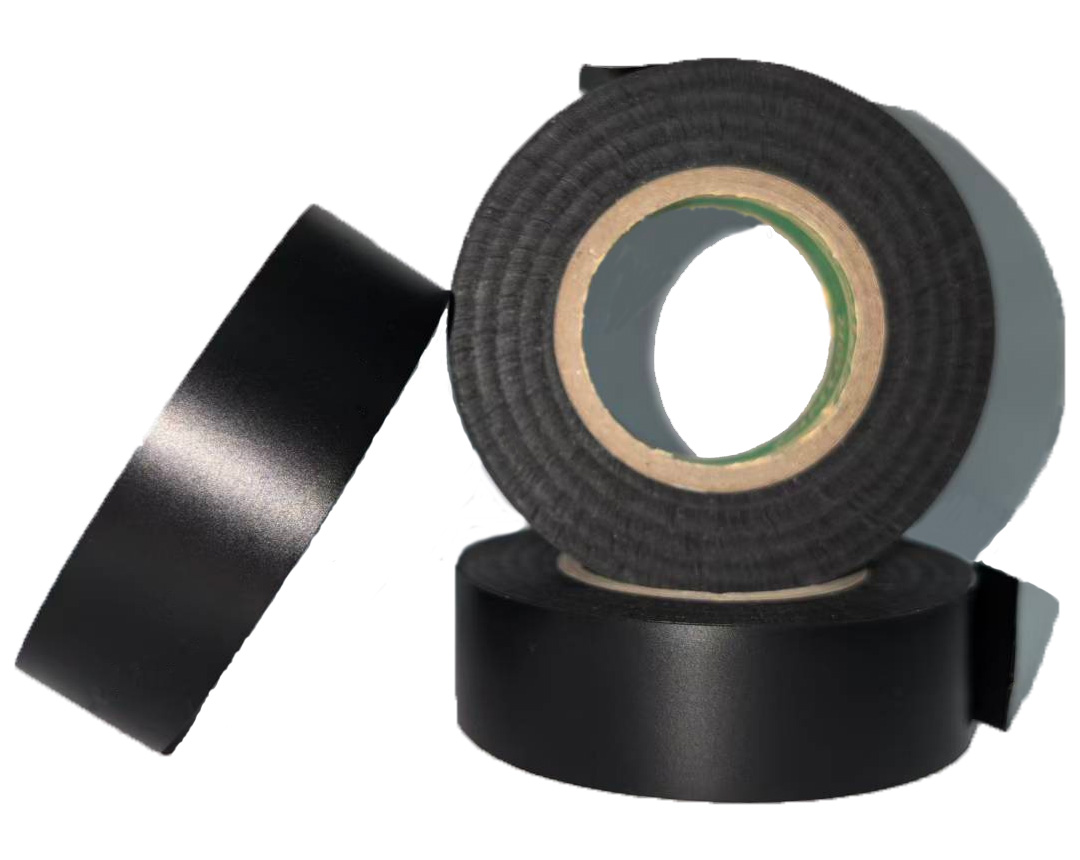

PC200
PVC film, low-VOC pressure-sensitive adhesive, 105℃

PC200 is made of high-quality PVC film coated with high-performance pressure-sensitive adhesive. It is highly efficient and environmentally friendly, with excellent coating effect. It does not contain toxic heavy metals such as lead, cadmium, chromium and mercury, and complies with the environmental protection requirements of the EU RoHS Directive and REACH regulation. Temperature resistance: 105℃.

Color: Black (Other colors can be customized)



Standard size

Width: 19 ;25millimeters

Length: 14;20 meters

Inner diameter of the paper tube: 32;38 millimeters

(Other sizes can be customized)



Performance

Units

Typical data

Test method

Total thickness

mm

0.22±0.025

EN1942

Tensile strength

N/cm

53

ISO29864

Elongation

%

34

ISO29864

Peel force

·for steel plates

·for the substrate



N/cm

N/cm



2.0

1.76

ISO29862

Flame retardancy



自熄

GMW16740

Unwinding force

N/cm

6-9

ASTM D1000

Note: The above data are typical figures based on test results and are not used as product specifications. For detailed information, please contact Lantor Technology.



Specially designed for winding and bundling automotive wiring harnesses. It is best to wrap it in a semi-overlapping manner. When wrapping the last layer, do not stretch it too much to prevent the head from lifting up.

It can be stored for 12 months in the original packaging box at 23℃×65%RH, away from direct sunlight.
