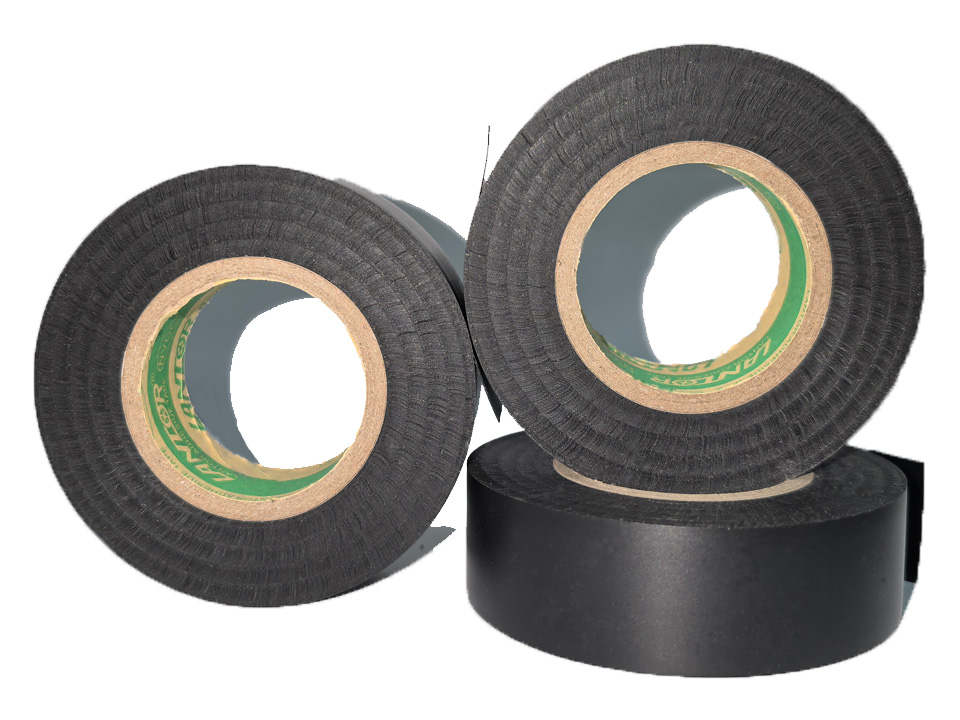

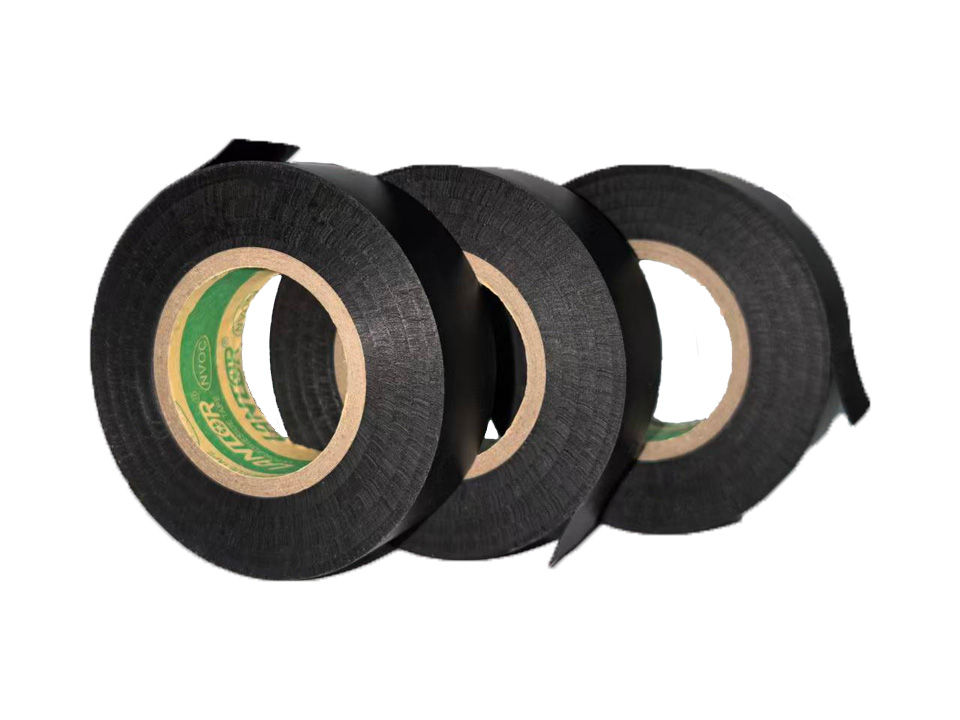

PFP100

Color: Black (Other colors can be customized)

Standard size

Width: 19；25 millimeters

Length: 35 meters

Inner diameter of the paper tube: 32；38 millimeters

(Other sizes can be customized)

Performance	Units	Typical data	Test method
Total thickness	mm	0.10±0.025	ASTM D1000
Tensile strength	N/cm	16	ISO 29864
Elongation	%	150	ISO 29864
Peel force (for steel plates)	N/cm	1.5	ISO 29862
Peel force (for the substrate)	N/cm	1.5	ISO 29862
Unwinding force	N/cm	1.5~4.0	EN1944
Flame retardancy	mm/min	自熄	ISO 3795

Note: The above data are typical figures based on test results and are not used as product specifications. For detailed information, please contact Lantor Technology.

Specially designed for winding and bundling automotive wiring harnesses. It is best to wrap it in a semi-overlapping manner. When wrapping the last layer, do not stretch it too much to prevent the head from lifting up.

It can be stored for 12 months in the original packaging box at 23℃×65%RH, away from direct sunlight.
