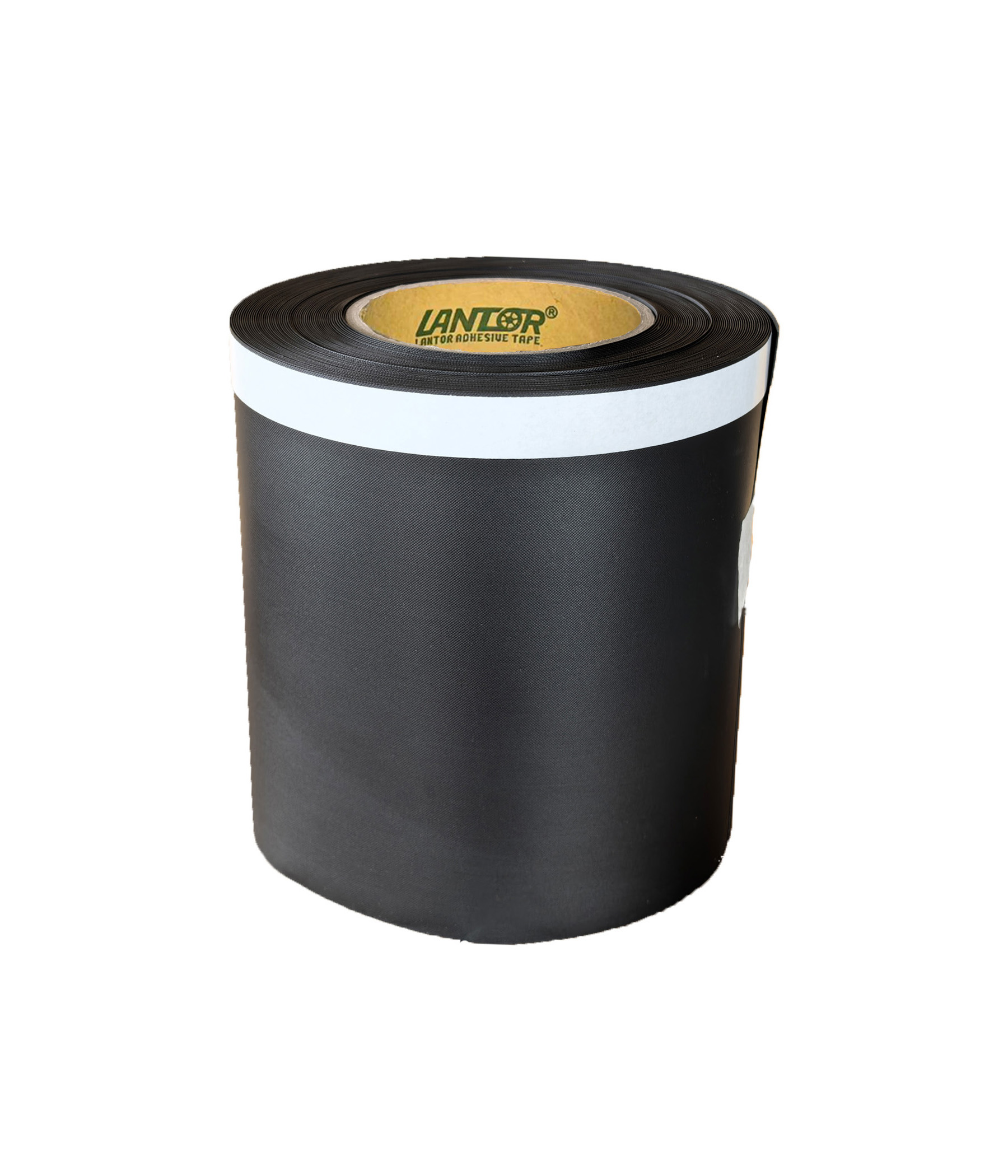

LTZW280

Color: Black (Other colors can be customized)

Standard size

Width: 40 100 millimeters

Length: 20 40 meters

Inner diameter of the paper tube: 76 millimeters

(Other sizes can be customized)

Project	Typical Value	Units	Test method
Thickness	0.3±0.02	mm	EN1942
Tensile Strength	14.7	N/cm	ISO29864
Elongation at Break	150	%	ISO29864
Back adhesive peel strength	4.4	N/cm	ISO29862
Adhesive peel strength	29.4	N/cm	ISO29862
Flame retardancy	B（self-extinguishing）		GMW 16740 / LV 312
Breakdown Voltage	1000	Kv/mm	ASTM D1000
Applicable Temperature	B：-25~85	℃	GMW 16740 / LV 312

Note: The above data are typical figures based on test results and are not used as product specifications. For detailed information, please contact Lantor Technology

Specifically designed to replace all types of automotive wiring harness tubes or wear-resistant tapes. Flexible alternatives enhance productivity and reduce production costs.

The storage temperature range is 20 to 30℃, the humidity is below 65%, and direct sunlight should be avoided. It can be stored for 2 years in the original packaging box.
